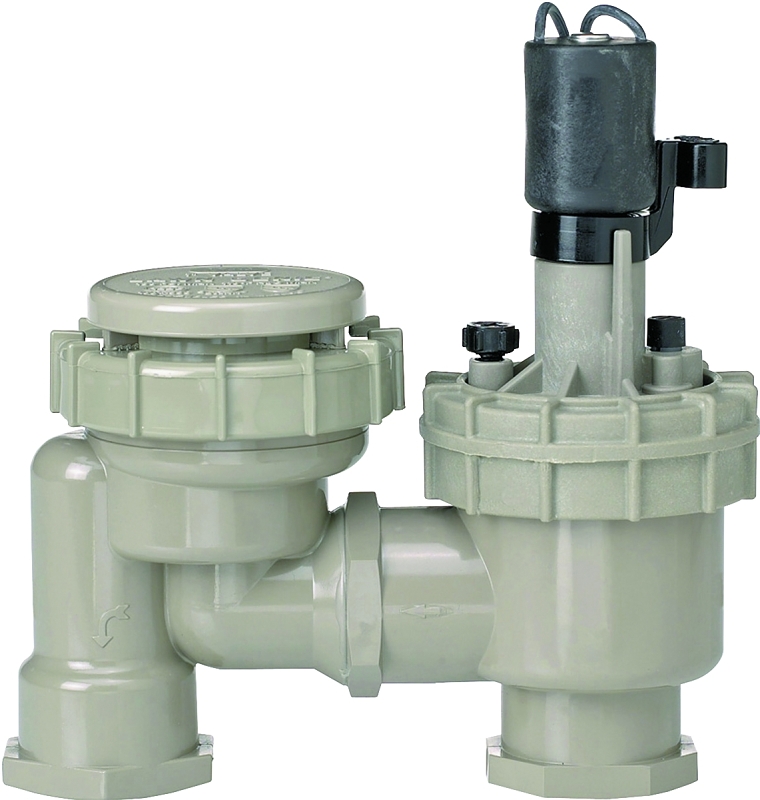

Lawn Genie L7034 Anti-Siphon Valve with Flow Control, 3/4 in, FNPT, 150 psi Pressure, 0.25 to 25 gpm, PVC Body

Lawn Genie

Lawn Genie L7034 Anti-Siphon Valve with Flow Control, 3/4 in, FNPT, 150 psi Pressure, 0.25 to 25 gpm, PVC Body

$24.99$24.99
Lawn Genie L7034 Anti-Siphon Valve with Flow Control, 3/4 in, FNPT, 150 psi Pressure, 0.25 to 25 gpm, PVC Body
  • Body Material: PVC
  • Connection Type: FNPT
  • Dimensions: 21 in L x 13 in W x 7 in H
  • Flow Rate: 0.25 to 25 gpm
  • Nominal Size: 3/4 in
  • Model #: L7034
  • UPC #: 022381070342
  • SKU: 4245148

Your shopping list will be used for pickup in-store

Product Details

Featuring a jar-top bonnet for easy access to diaphragm for quick maintenance inspections, this automatic valve has built-in backflow prevention. The built-in prevention is designed to protect drinking and other household water from contamination. The Lawn Genie 3/4 in anti-siphon valve also features flow control and both internal and external bleed. Flow control allows for fine tuning of the amount of water pressure going to each individual zone reducing misting and fogging at the sprinkler and therefore saving water. Internal bleed used to turn the valve on at the manifold location for system check-ups or for extra watering. External bleed is the ideal way to flush out dirt from the supply and lateral lines during new installations and repairs, because any dirt passes through the valve rather than becoming stuck in the valve.

Item Specifications

Body MaterialPVC
Connection TypeFNPT
Dimensions21 in L x 13 in W x 7 in H
Flow Rate0.25 to 25 gpm
Nominal Size3/4 in
Pressure Rating150 psi
Temperature Rating120 deg F
