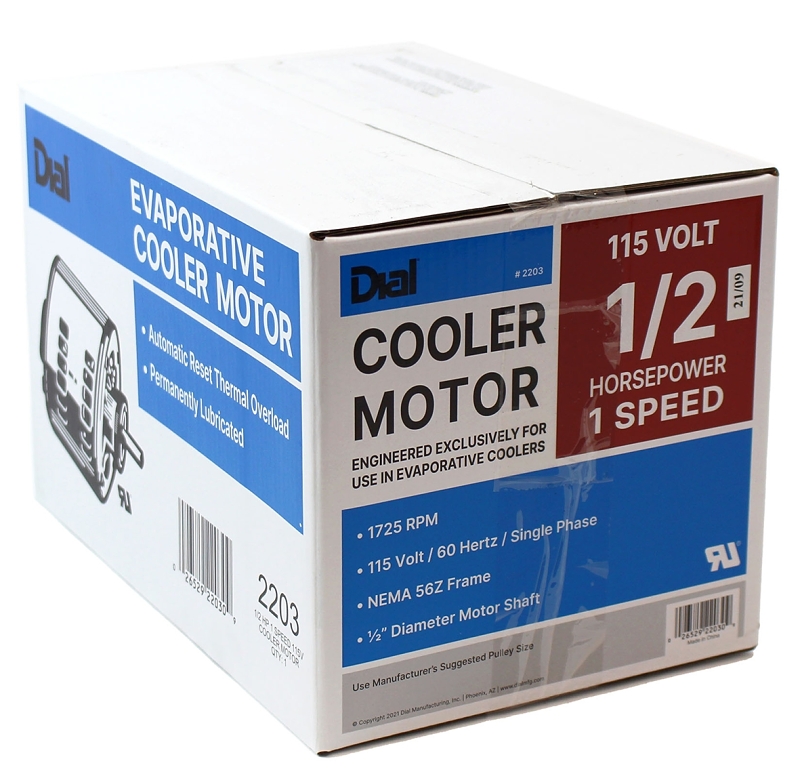

Dial 2203 Evaporative Cooler Motor, 0.5 hp, 1-Phase, 115 V, 1/2 in Dia Shaft, Clockwise Shaft Rotation, 1725 rpm Speed

Dial

Dial 2203 Evaporative Cooler Motor, 0.5 hp, 1-Phase, 115 V, 1/2 in Dia Shaft, Clockwise Shaft Rotation, 1725 rpm Speed

$149.99$149.99
Dial 2203 Evaporative Cooler Motor, 0.5 hp, 1-Phase, 115 V, 1/2 in Dia Shaft, Clockwise Shaft Rotation, 1725 rpm Speed
  • Bearing Type: Ball
  • Current Rating: 6.3 A
  • Frequency Rating: 60 Hz
  • HP Rating: 0.5 hp
  • Material: Steel
  • Model #: 2203
  • UPC #: 026529220309
  • SKU: 4032512

Your shopping list will be used for pickup in-store

Product Details

High efficiency, high-temperature insulation system. Capable of withstanding temperatures over 300 deg F. Reduces motor failures due to heat aging. Premium moisture-resistant insulation system. Styrenated epoxy coating on rotor prevents rust build-up and extends the life of the motor. 115 V, all copper windings, no base, 56Z frame. Auto-reset thermal overload protection. Great starting switch features. Heavy-duty bronze bearing. Mechanically and electrically approved for evaporative cooler applications. Label and instructions in English and Spanish. UL approved construction.

Key Features

  • Residential replacement motor
  • Heavy-duty bronze bearing
  • High efficiency
  • Auto-reset thermal overload protection
  • High-temperature insulation system
  • Great starting switch features

Item Specifications

Bearing TypeBall
Current Rating6.3 A
Frequency Rating60 Hz
HP Rating0.5 hp
MaterialSteel
Number of Phases1
Ring to Ring Center7-1/2 in
Shaft Diameter1/2 in
Shaft RotationClockwise
Speed Rating1725 rpm
Temperature Rating300 deg F
Voltage Rating115 V
